KBDFans Tiger Lite DIY Kit

Features
TKL
Hotswap
RGB |
Specs & Details

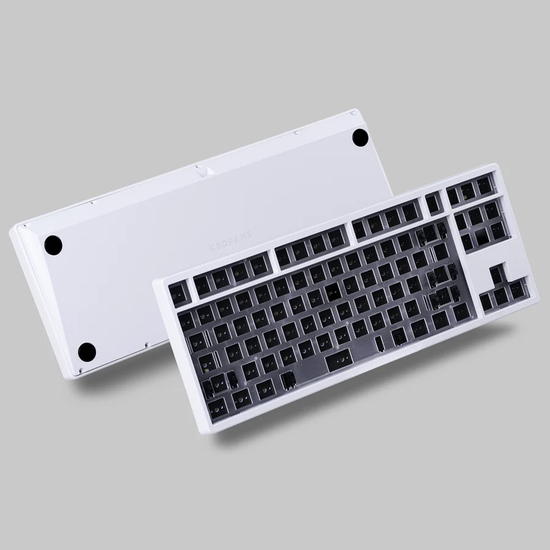

A light keyboard that offers amazing acoustics and soft typing feel at an affordable price, the Tiger Lite is KBDFans' new TKL kit.
Sound wise it is as good as Tiger80 Aluminum kit at a way better price!

✨ Tiger Lite features

  • TKL Layout (87 Keys)
  • Hotswap Sockets
  • VIA compatible south-facing PCB with RGB underglow
  • Polycarbonate Plate
  • Silicone socks gasket structure

    SPECS

    • Layout: 80%
    • PCB: Hotswapable, Flex Cut, 1.2 mm thickness, RGB underglow, QMK firmware, USB-C interface
    • Case: Top and Bottom ABS plastic
    • Plate: Polycarbonate
    • Structure: Leaf spring mount
    • Typing angle: 7°
    • Compatibility: MX-type switches
    • keyboard Size: 358 x 134 x 31.9mm Front height 17.5mm
    • Tape Mod Size: 347 mm x 116 mm
    • Designer: Wei


    Does not come with Switches and Keycaps.

    Add-on Keyboard Mods

    Stabiliser Tuning is recommended to prevent rattle and increase smoothness.
    • Lubing with Krytox205g2 on housing
    • Lubing with Permatex Dielectric Grease on wires
    • Balance wires to ensure that there will be no rattle.

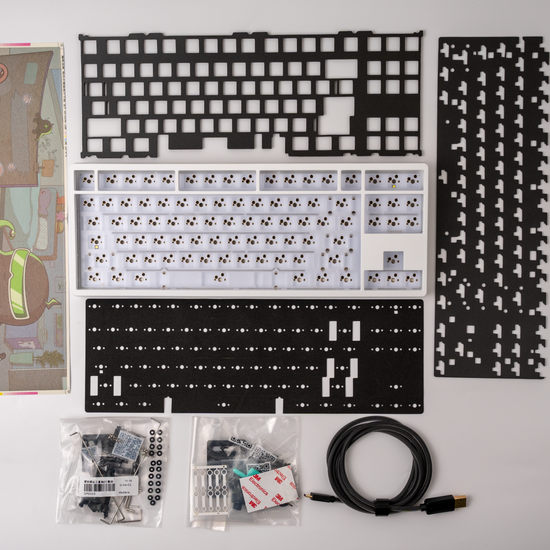

    In the box
    Does not come with Switches and Keycaps.

    You will need 87 switches for this keyboard.

    Accesories
    • ABS Plastic top and bottom case
    • USB Cable (White/Black)

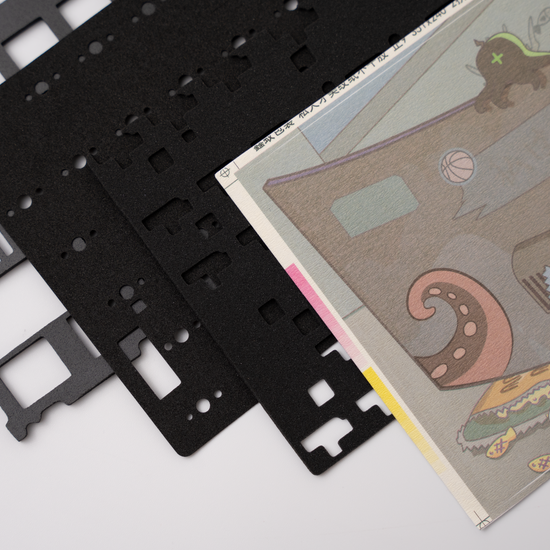

    • PCB and Case Foam
    • Switch pads
    • Silicone socks set
    • Designed tape mod
    • Cherry stabs kit
    • Stabilizer shims

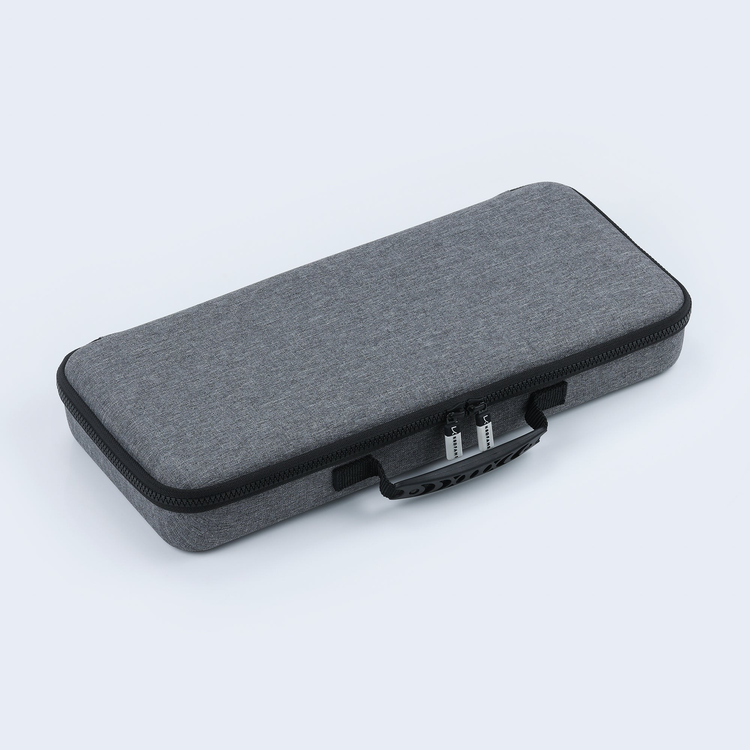

    • Carrying case
    • Rubber feet
    Controls & Software
    Color
    Stabilizer
    Keyboard Mods
    Regular price
    $195.00
    Regular price
    Sale price
    $195.00
    or 3 x $65.00 with
    or 4 x $48.75 with
    In-stock, ready to ship or self pickup
    A light keyboard that offers amazing acoustics and soft typing feel at an affordable price, the Tiger Lite is KBDFans' new TKL kit.
    Sound wise it is as good as Tiger80 Aluminum kit at a way better price!

    ✨ Tiger Lite features

    • TKL Layout (87 Keys)
    • Hotswap Sockets
    • VIA compatible south-facing PCB with RGB underglow
    • Polycarbonate Plate
    • Silicone socks gasket structure

      SPECS

      • Layout: 80%
      • PCB: Hotswapable, Flex Cut, 1.2 mm thickness, RGB underglow, QMK firmware, USB-C interface
      • Case: Top and Bottom ABS plastic
      • Plate: Polycarbonate
      • Structure: Leaf spring mount
      • Typing angle: 7°
      • Compatibility: MX-type switches
      • keyboard Size: 358 x 134 x 31.9mm Front height 17.5mm
      • Tape Mod Size: 347 mm x 116 mm
      • Designer: Wei


      Does not come with Switches and Keycaps.

      Add-on Keyboard Mods

      Stabiliser Tuning is recommended to prevent rattle and increase smoothness.
      • Lubing with Krytox205g2 on housing
      • Lubing with Permatex Dielectric Grease on wires
      • Balance wires to ensure that there will be no rattle.
      KBDFans Tiger Lite keyboard layout
      KBDFans Tiger Lite keyboard dimensions
