MJ87 Keyboard DIY Kit
Features
*Get the keyboard fully built by us
Specs & Details
Specs & Details
A budget TKL keyboard kit for an entry into custom keyboards.
✨ MJ87 v2 features
- TKL Layout (87 Keys)
- Hotswap Sockets
- North-facing RGB
- BT 5.0
- Wireless 2.4G
- Aluminium Plate
- Modified Stack Mount
- Stock stabilisers
Does not come with Switches and Keycaps.
Add-on Keyboard Mods
Stabiliser Tuning is recommended to prevent rattle and increase smoothness.
- Lubing with Krytox205g2 on housing
- Lubing with Permatex Dielectric Grease on wires
- Balance wires to ensure that there will be no rattle.

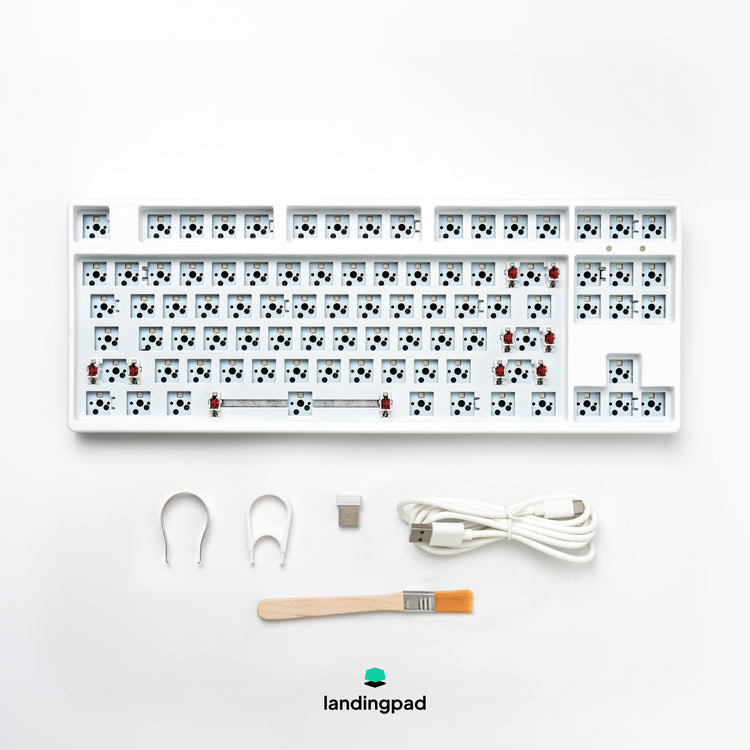

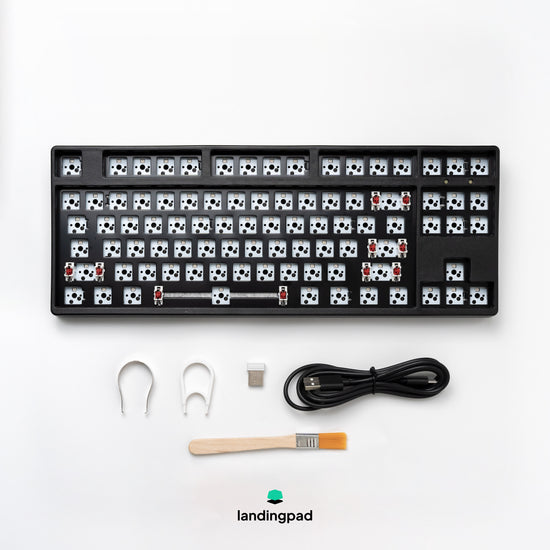

In the box
In the box
Does not come with Switches and Keycaps.
You will need 87 switches for this keyboard.
Accesories
- Keycap Puller
- Switch Puller
- Wireless 2.4G Dongle
- USB Cable (White/Black)
Controls & Software
Controls & Software
Controls
Customizable animation(7 preset patterns), speed and colour.
To connect keyboard to device: turn the keyboard on,flick the back button to the middle for BT and the left for Wireless 2.4G, hold either FN + 1/2/3 for 3 seconds (This activates keyboard's BT sharing). Search for the keyboard on your device(name should be XJ-87 Keyboard-1 / XJ-87 Keyboard-2 / XJ-87 Keyboard-3) and select the keyboard once found. FN+4 connects the keyboard via 2.4G dongle, while FN + 5 connects via wire.
Key | Function |
---|---|
fn+f1 | Media |
fn+f2 | Voice - |
fn+f3 | Voice + |
fn+f4 | Mute |
fn+f5 | Play Stop |
fn+f6 | Play Prev |
fn+f7 | Play/Pause |
fn+f8 | Play Next |
fn+f9 | |
fn+f10 | Web home |
fn+f11 | Calculator |
fn+f12 | Search |
fn+SPACE | Change RGB Colour |
fn+INSERT | RGB Animation Pattern (3 unique Patterns) |
fn+DELETE | RGB Animation Pattern (3 unique Patterns) |
fn+HOME | RGB Animation Pattern (3 unique Patterns) |
fn+END | RGB Animation Pattern (3 unique Patterns) |
fn+PGUP | RGB Animation Pattern (3 unique Patterns) |
fn+PGDN | RGB Animation Pattern (3 unique Patterns) |
fn+UP | RGB Animation Pattern (3 unique Patterns) |
fn+DOWN | RGB Animation Pattern (3 unique Patterns) |
fn+LEFT | Increase RGB Brightness |
fn+RIGHT | Decrease RGB Brightness |
fn+- | RGB Animation Speed (Decrease) |
fn++ | RGB Animation Speed (Increase) |
fn+R | Alternate Between Wired and BT Mode |
fn+1 | Change to BT Device 1 |
fn+2 | Change to BT Device 2 |
fn+3 | Change to BT Device 3 |
fn+4 | Change to Wireless 2.4G |
fn+5 | Change to Wired Mode |
fn+ESC | Reset whole keyboard(Press and hold 3 seconds) |
- Regular price
- $59.00
- Regular price
-
- Sale price
- $59.00
- Unit price
- per
or 3 x $19.66 with
or 4 x $14.75 with
Couldn't load pickup availability
A budget TKL keyboard kit for an entry into custom keyboards.
✨ MJ87 v2 features
- TKL Layout (87 Keys)
- Hotswap Sockets
- North-facing RGB
- BT 5.0
- Wireless 2.4G
- Aluminium Plate
- Modified Stack Mount
- Stock stabilisers
Does not come with Switches and Keycaps.
Add-on Keyboard Mods
Stabiliser Tuning is recommended to prevent rattle and increase smoothness.
- Lubing with Krytox205g2 on housing
- Lubing with Permatex Dielectric Grease on wires
- Balance wires to ensure that there will be no rattle.
