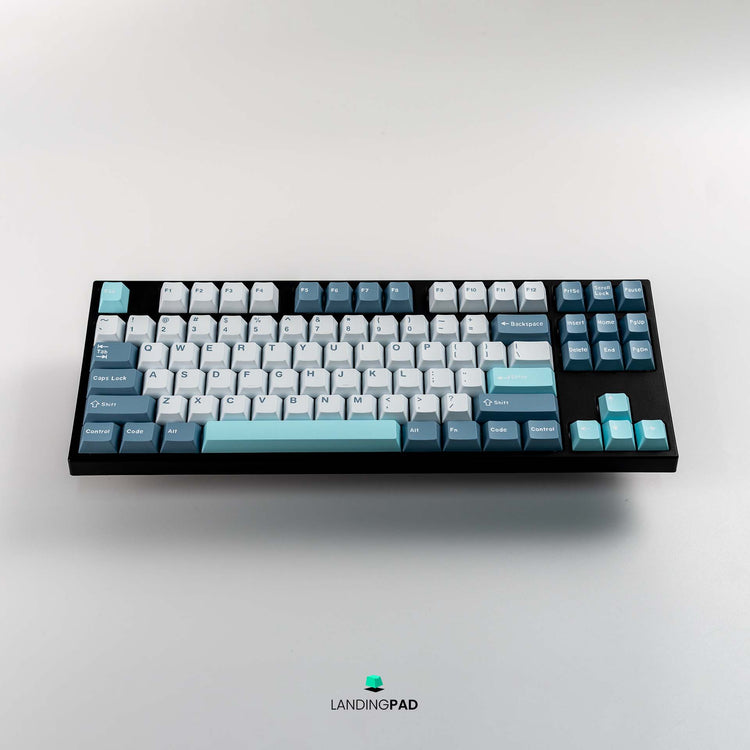

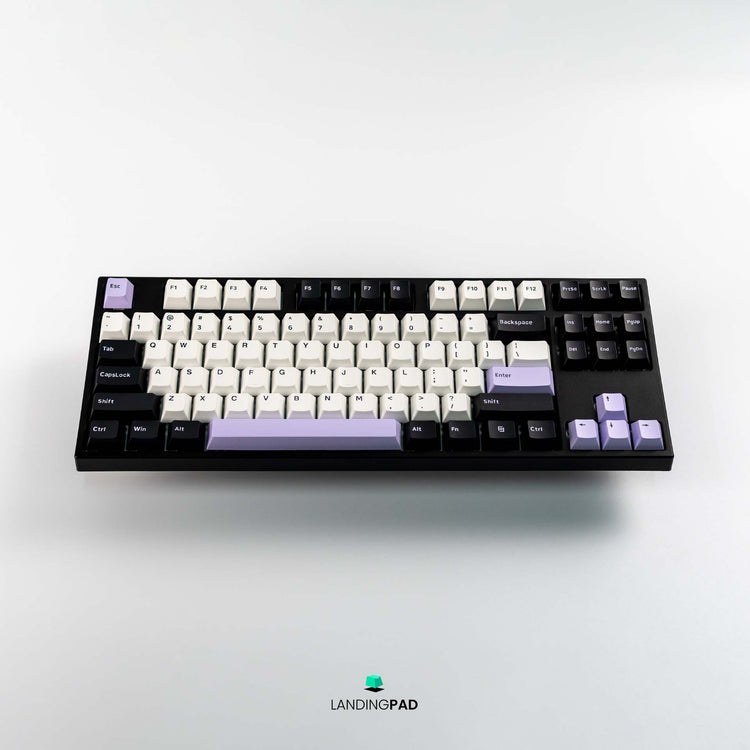

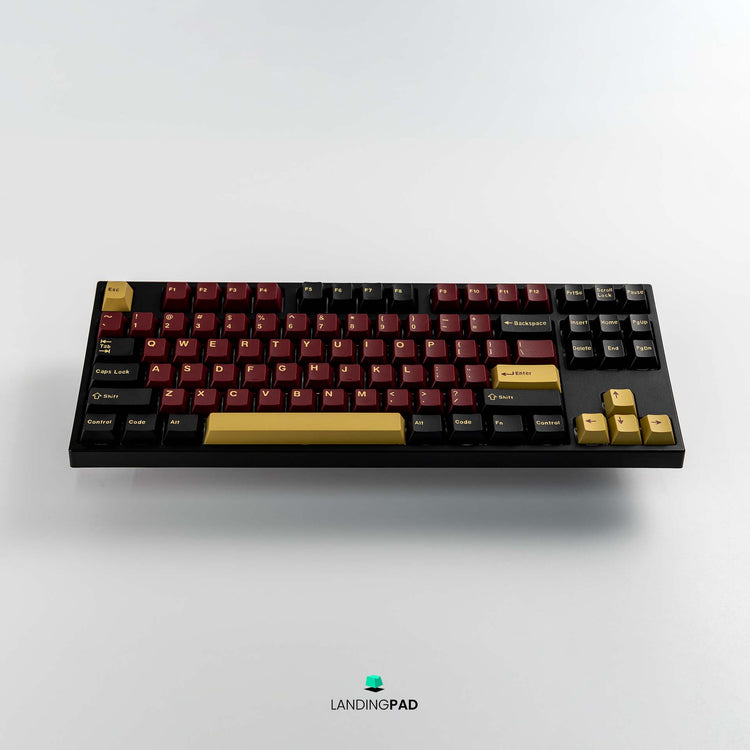

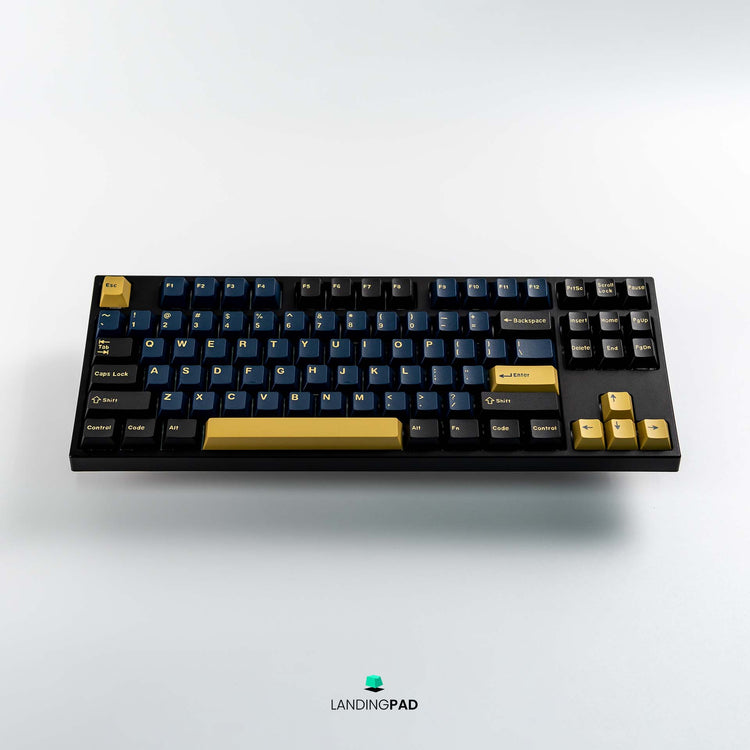

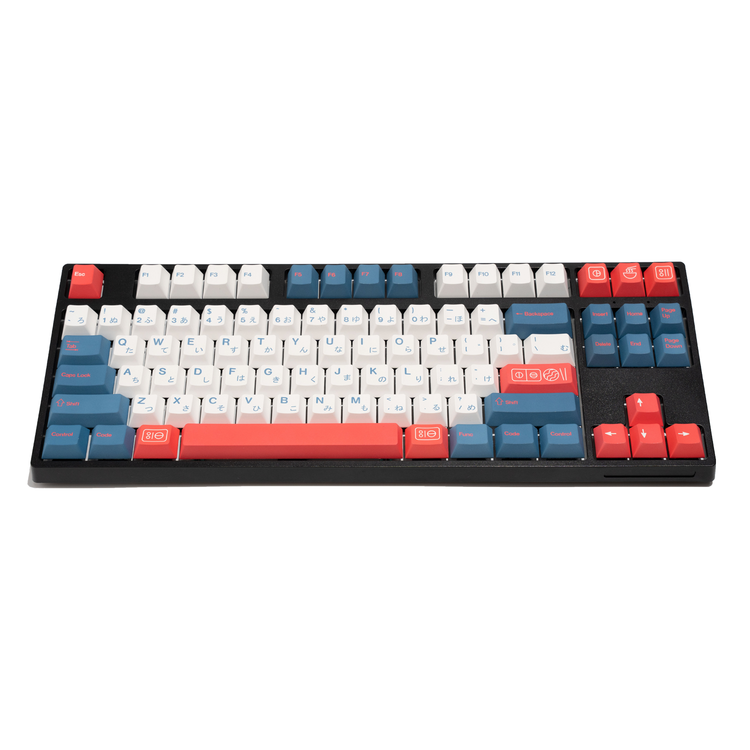

MJ87 Keyboard

Regular price: $199.00
Regular price
Sale price: $199.00
Unit price: per

Features

Hotswap

Wireless

Specs & Details

A budget TKL keyboard kit for an entry into custom keyboards.

✨ MJ87 v2 features

TKL Layout (87 Keys)
Hotswap Sockets
North-facing RGB
Bluetooth
Wireless 2.4G
Aluminium Plate
Modified Stack Mount
Stock stabilisers

Does not come with Switches and Keycaps.

Add-on Keyboard Mods

Stabiliser Tuning is recommended to prevent rattle and increase smoothness.

Lubing with Krytox205g2 on housing
Lubing with Permatex Dielectric Grease on wires
Balance wires to ensure that there will be no rattle.

In the box

Does not come with Switches and Keycaps.

You will need 87 switches for this keyboard.

Accesories

Keycap Puller
Switch Puller
Wireless 2.4G Dongle
USB Cable (White/Black)

Controls & Software

Controls

Customizable animation(7 preset patterns), speed and colour.

To connect keyboard to device: turn the keyboard on by flicking the button to the middle for BT, and to the left for Wireless 2.4G, hold either FN + 1/2/3 for 3 seconds (This activates keyboard's bluetooth sharing). Search for the keyboard on your device(name should be XJ-87 Keyboard-1 / XJ-87 Keyboard-2 / XJ-87 Keyboard-3) and select the keyboard once found. FN+4 connects the keyboard via 2.4G dongle, while FN + 5 connects via wire.

Key	Function
`fn`+`f1`	Media
`fn`+`f2`	Voice -
`fn`+`f3`	Voice +
`fn`+`f4`	Mute
`fn`+`f5`	Play Stop
`fn`+`f6`	Play Prev
`fn`+`f7`	Play/Pause
`fn`+`f8`	Play Next
`fn`+`f9`	Email
`fn`+`f10`	Web home
`fn`+`f11`	Calculator
`fn`+`f12`	Search
`fn`+`SPACE`	Change RGB Colour
`fn`+`INSERT`	RGB Animation Pattern (3 unique Patterns)
`fn`+`DELETE`	RGB Animation Pattern (3 unique Patterns)
`fn`+`HOME`	RGB Animation Pattern (3 unique Patterns)
`fn`+`END`	RGB Animation Pattern (3 unique Patterns)
`fn`+`PGUP`	RGB Animation Pattern (3 unique Patterns)
`fn`+`PGDN`	RGB Animation Pattern (3 unique Patterns)
`fn`+`UP`	RGB Animation Pattern (3 unique Patterns)
`fn`+`DOWN`	RGB Animation Pattern (3 unique Patterns)
`fn`+`LEFT`	Increase RGB Brightness
`fn`+`RIGHT`	Decrease RGB Brightness
`fn`+`-`	RGB Animation Speed (Decrease)
`fn`+`+`	RGB Animation Speed (Increase)
`fn`+`R`	Alternate Between Wired and Bluetooth Mode
`fn`+`1`	Change to Bluetooth Device 1
`fn`+`2`	Change to Bluetooth Device 2
`fn`+`3`	Change to Bluetooth Device 3
`fn`+`4`	Change to Wireless 2.4G
`fn`+`5`	Change to Wired Mode
`fn`+`ESC`	Reset whole keyboard(Press and hold 3 seconds)
